RoHS Gold Plated Banana Plug Connectors 4/5mm Durable For RC ESC

Product Categories

Dongguan Hexie New Energy Technology Co., Ltd.

Contact Now

Name: RoHS Gold Plated Banana Plug Connectors 45mm Durable For RC ESC
Brand: Hexie
Price: 0.05 USD

Brand Name : Hexie

Model Number : 4mm 5mm Banana Plug Connector

Certification : RoHS SGS UL CE TUV IATF16949 ISO9001

Place of Origin : China

MOQ : 500Pcs

Price : USD0.05-0.45 per Pair

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 50000Pcs per Month

Delivery Time : 7-15 work days

Packaging Details : PE bag with Carton

Product Name : 4mm 5mm Gold Plated Banana Plug Bullet Connectors

Application : RC Drone Helicopter ESC Battery

Certificate : RoHS IATF16949 ISO9001 TUV UL

Connector Diameter : 4.0mm 5.0mm

Connector Gender : Male & Female

Connector Material : Gold Plated Copper

Rated Current : 35-40A

Rated Voltage : 60-600V

Contact Resistance : 0.3mΩ

Applicable Wire Gauge : 10 12 14 16 18AWG

Contact Now

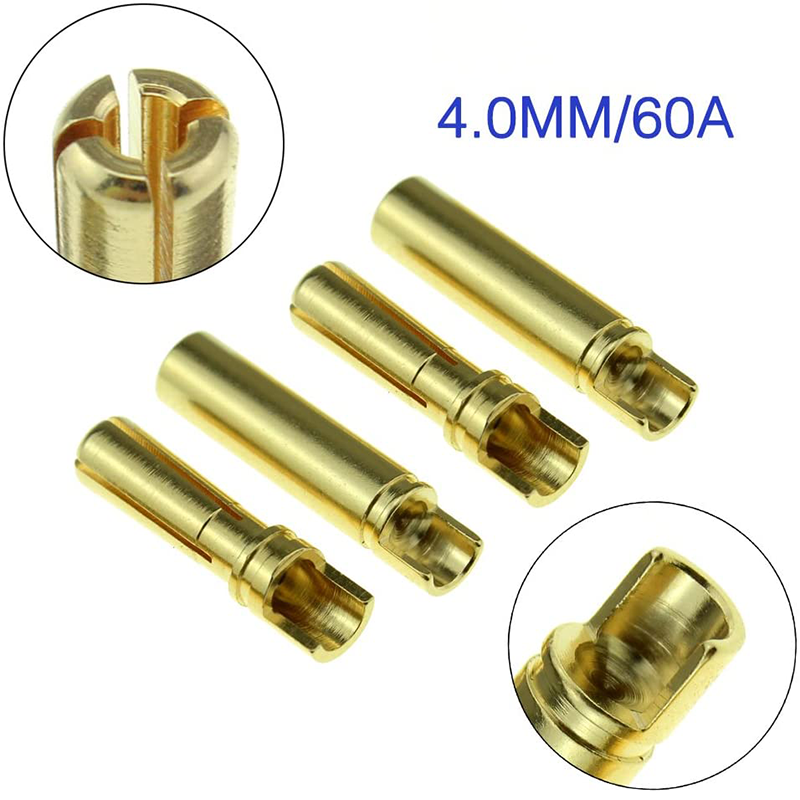

4.0mm 5.0mm Gold Plated RC Banana Plug Bullet Female Male Connector For RC ESC

Product Description

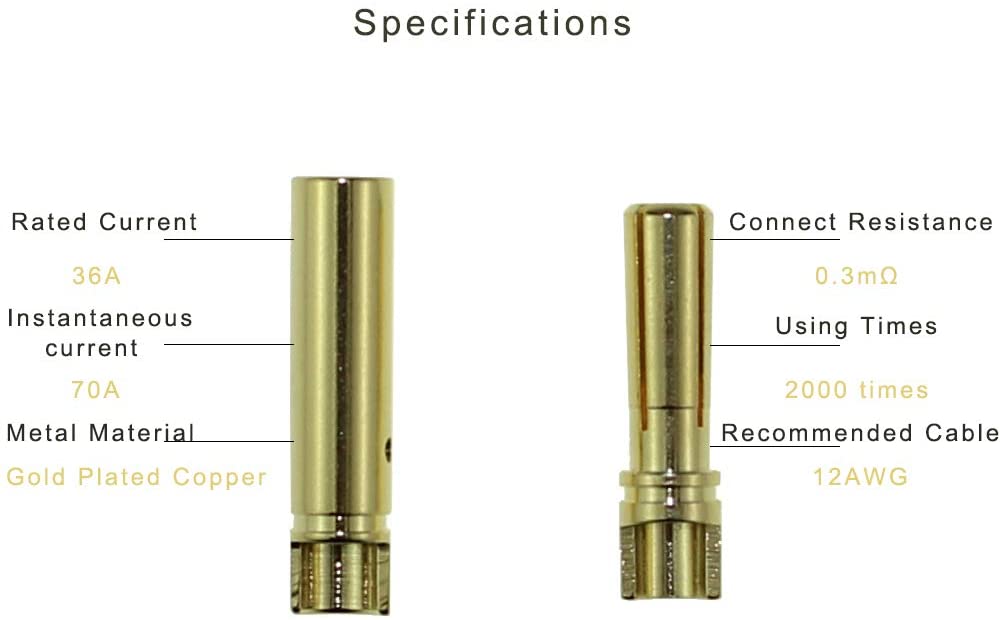

Parameters - Diameter: 4mm; Length of Male end: 19.7mm; Max outer diameter of Male end: 5mm; Inner diameter of Male end solder joint: 3.4mm
Material - The 4mm banana plug is brass gold-plated, which is not easy to oxidize and has good electrical conductivity
Function - Connect the brushless motor to the electronic speed control to provide good current
Features - Low resistance, and gives the best electric flow
Application - BNN40 80A bullet connector is suitable for remote control helicopters, cars, trucks and other electronic equipment.

High quality Male Female 4mm 5mm banana plug RC airplane battery connector electrical plugs connector
Item Name	High quality Male Female 4mm banana plug RC airplane battery connector electrical plugs connector
Material	Brass/copper/stainless steel, as you need
Surface Treatment or Finish	Gold plated/nickel plated/silver plated/tin plated, as you need
Packing	Inner---PE Bag; Outer --Carton Box
Application	Electrical connectors, RC connectors, vedio and audio connectors, Models, Toys, UAV, 3D printers, Robots, Medical instrumentation, Andio and other Industries.
Certificate	RoHS SGS IATF16949 UL Conducted by ISO9001 and ISO14001 system
Manufacturing Equipments	CNC Lathes, Automatic Lathes, CNC Milling Machines, CNC Machining Center, CNC Engraving Machine, Sandblasting Machine, Laser Carving Machine, Hairline Machine,Knurling Machine, High-Gloss Finish Machine, Punching Machines, etc
Measuring Equipments	3D Measurer, Projector, Salt Spray Tester, Hardness Tester, ect.
Delivery & Shipping	Short lead time, usually in 3 to 15 days, by DHL, FedEx, UPS or other forwarders.
Service	Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the US, Europe, Japan and other countries and regions
